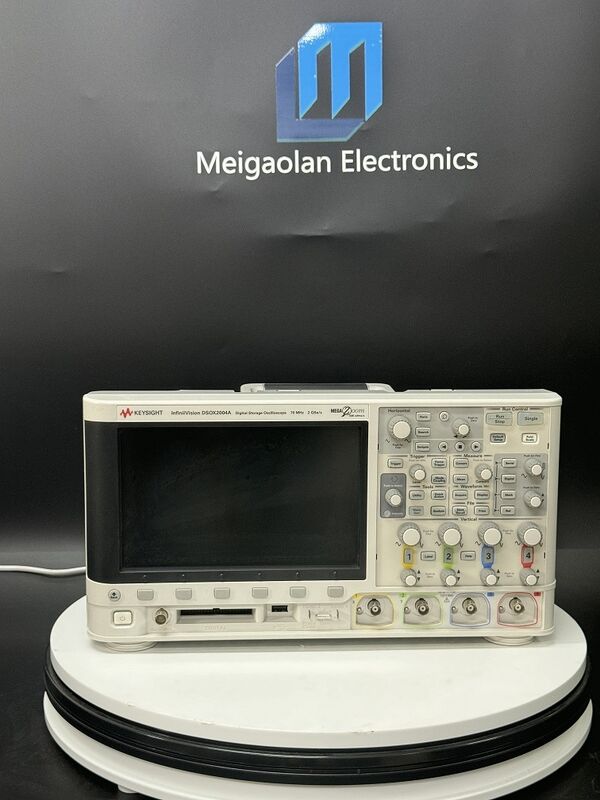

Keysight Digital Storage Oscilloscope DSOX2004A 70Mhz 2GSa/s 4 Analog Channels

InfiniiVision 2000 X-Series 70 MHz oscilloscope provides 4 analog channels, 100 kpts memory, and 200,000 waveforms/sec update rate

The InfiniiVision 2000 X-Series 70 MHz oscilloscope provides 4 analog channels, 1 Mpt of memory, and a >200,000 waveforms/sec update rate

Features of Keysight DSOX2004A Digital Storage Oscilloscope

• 70 MHz

• 4 analog channels

• Easily view your signals on the 8.5-inch WVGA display

• Capture more data with up to 1 Mpts memory

• See more signal detail with 200,000 wfms/s update rate

• Expand your measurement capabilities with full upgradability: Add digital channels, 20 MHz function generator, 3-digit voltmeter, serial trigger and analysis, segmented memory & mask testing at any time

• Easily set up teaching labs with our free Educator’s Resource Kit

Want to Touch Operation and Additional Analysis Capabilities to Discover and Solve your problem?

See the InfiniiVision 3000G X-Series.

• 8.5-inch capacitive touch display
• Zone touch trigger capability
• 100 MHz to 1 GHz DSO and MSO models
• > 1,000,000 waveforms/sec
• Standard segmented memory
• Fully upgradable 7 instrument in 1
• Digital channels (MSO)
• Protocol analysis including new CAN-FD and SENT bus support
• 20 MHz WaveGen with arbitrary waveform and modulation support
• 3-digit digital voltmeter (DVM)
• 5-digit counter/8-digit totalizer
• Frequency Response Analyzer
• N7020A Power Rail Probe and N2820A High Sensitivity Current Probe support
• Standard time gated FFT feature

Do More with The Power of 5 Instruments In 1

Best-in-class oscilloscope
The infiniiVision 2000 X-Series features Keysight's patentedMegaZoom lV smart memory technology that is always enabled andalways responsive providing the industry's fastest update rate at upto 200,000 waveforms per second, with no compromise if you turnon measurements or add digital channels. In addition, the 2000 X-Series offers 25 automated measurements such as voltage, time,and frequency as well as 18 waveform math functions includingadd, subtract, multiply, divide, and FFT.

Industry's first economy-class mixed signal oscilloscope (MSO)
The 2000 X-Series is the first instrument in its class to offer anintegrated logic timing analyzer. Digital content is everywhere intoday's designs and with an additional 8 integrated digital timingchannels, you now have up to 12 channels of time-correlatedtriggering, acquisition and viewing on the same instrument. Buy a 2or 4 channel DSO and at any time, upgrade it yourself to a MSOwith a license to turn on those integrated 8 digital timing channels.

Industry's first WaveGen built-in 20 MHz function generatorwith a modulation capability!
An industry first, the 2000 X-Series offers an integrated 20 MHzfunction generator, now available with the signal modulationcapability, ldeal for educational or design labs where bench spaceand budget are at a premium, the integrated function generatorprovides stimulus output of sine, square, ramp, pulse, DC and noisewaveforms to your device under test. No need to buy a separatefunction generator when you can get one integrated in your newoscilloscope.Turn on WaveGen at any time by ordering theDSOX2WAVEGEN option and install the license yourself.

Hardware-based serial protocol decode and triggering
Embedded serial triggering and analysis (1C, SPl, UART/RS232/422/485))Automotive and industrial serial triggering and analysis (CAN, LIN)
Keysight's lnfiniVision Series osciloscopes are the industry's first scopes to use hardware-based serialprotocol decoding. Other vendors' osciloscopes use software post-processing techniques that slow downboth waveform and decode update rate. That's especially true when using deep memory, which is oftenrequired to capture multiple packetized serial bus signals, Faster decoding with hardware-basedtechnology enhances scope usability and, more importantly, the probability of capturing infrequent serialcommunication errors.
After capturing a serial bus communication, you can easily perform a search-and-navigation operationbased on specific criteria of your interest. Note, the digital channels and serial protocol analysis cannot beused simultaneously.

DSOX2004A Probe solutions
Get the most out of your 2000 X-Series scope, by using the right probes and accessories for yourapplication. Keysight offers a complete family of innovative probes and accessories for the InfiniVision2000 X-Series scopes, For the most up-to-date and complete information about Keysight's probes andaccessories, please contact us!

Autoscale
Quickly display any active signals and automatically set the vertical, horizontal and trigger controls foroptimal viewing with the press of the autoscale button. (This feature can be disabled or enabled for theeducation environment via a USB thumb drive file with a SCPl remote command).

Connectivity and LXl compatibility
Built-in USB host (one front, one back) and USB device ports make PC connectivity easy. Operate thescope from your PC and save and recall stored waveforms as well as set-up files via LAN. An optionalLAN/VGA module gives you network connectivity and complete LXl class C support as well as the abilitto connect to an external monitor. An optional GPlB module is also available. Only one module may beused at a time.
A node-locked license for the BV0004B BenchVue Oscilloscope Control and Automation software can beredeemed at no additional cost for each Keysight lnfiniiVision X-Series oscilloscope purchased after June1, 2019. Build automated test sequences just as easy as using your front panel. Save time with the abilityto export measurement data to Excel, Word and MATLAB in three clicks. Monitor and control your 2000X-Series with a mobile device from anywhere. Simplify your testing with BenchVue software.
